Backup Strategy

dbtrail is your MySQL backup system. It combines full logical snapshots with continuous binary log streaming so every row change is captured, queryable, and restorable to any point in time within your retention window. This guide explains how the architecture works, how to configure it, and how it compares to a DIY mysqldump + cron setup.

How dbtrail backs up your database

dbtrail takes two things and combines them into a complete backup system:

1. Full base snapshots — taken on a schedule with mydumper (parallel logical dumps). Each snapshot is uploaded to S3 and embeds the exact binlog position and GTID set at the time of the dump.
2. Continuous binlog streaming — the agent registers as a MySQL replica and captures every INSERT, UPDATE, and DELETE in real time. Events are indexed for instant query and archived as Parquet for long-term retention.

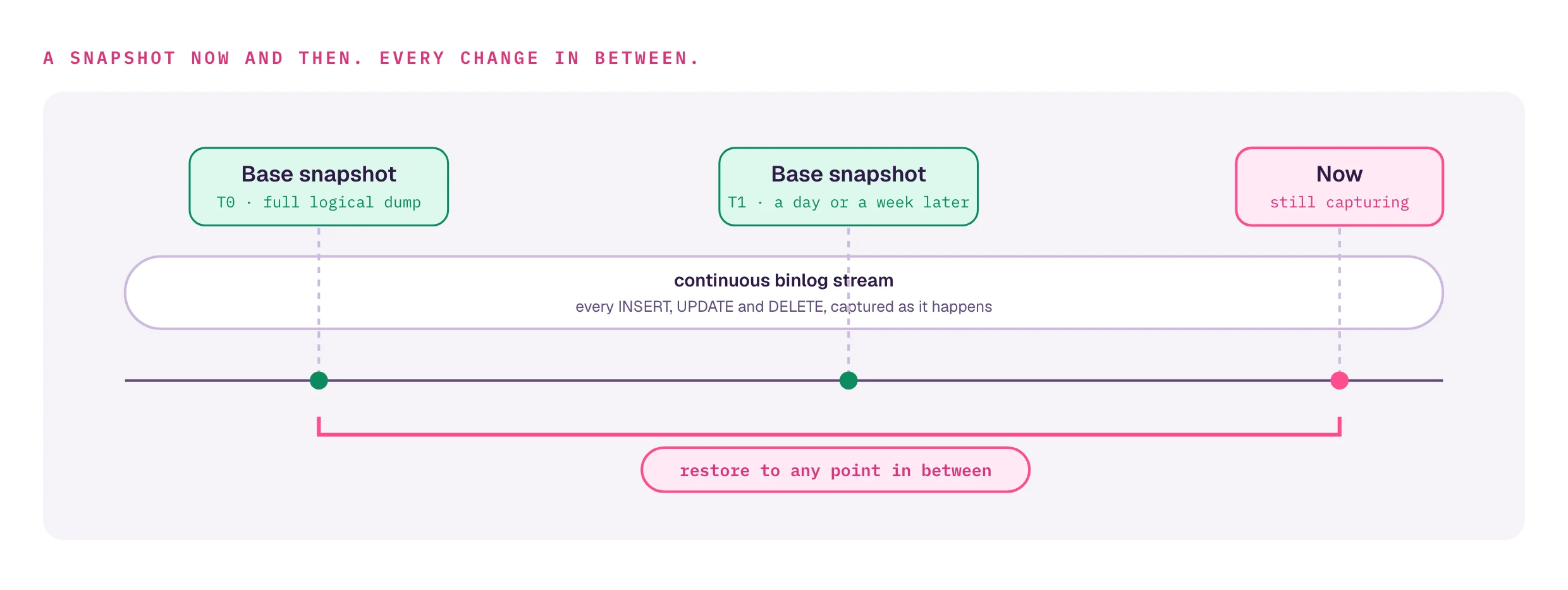

[Base snapshot T0] ─── continuous binlog stream ───> [Base snapshot T1] ─── stream ───> [now]
        │                          │                          │                   │
        │   Every change           │                          │   Every change    │
        │   captured as it         │                          │   captured as it  │
        │   happens                │                          │   happens         │
        │                          │                          │                   │
        └── Restore to any point ──┴── Restore to any point ──┴── Restore to any point

Together, these give you point-in-time recovery to any moment after the earliest available base snapshot — not just to the last nightly cron.

Why both pieces matter

A base snapshot by itself is stale the moment it's taken. A binlog stream by itself has no starting point — reconstructing state from a stream of deltas requires knowing what came before. dbtrail maintains both automatically so you never have to think about the gap.

Scheduled backups

Create a backup schedule from the dashboard (Dashboard → Backups → New Schedule) or via the API:

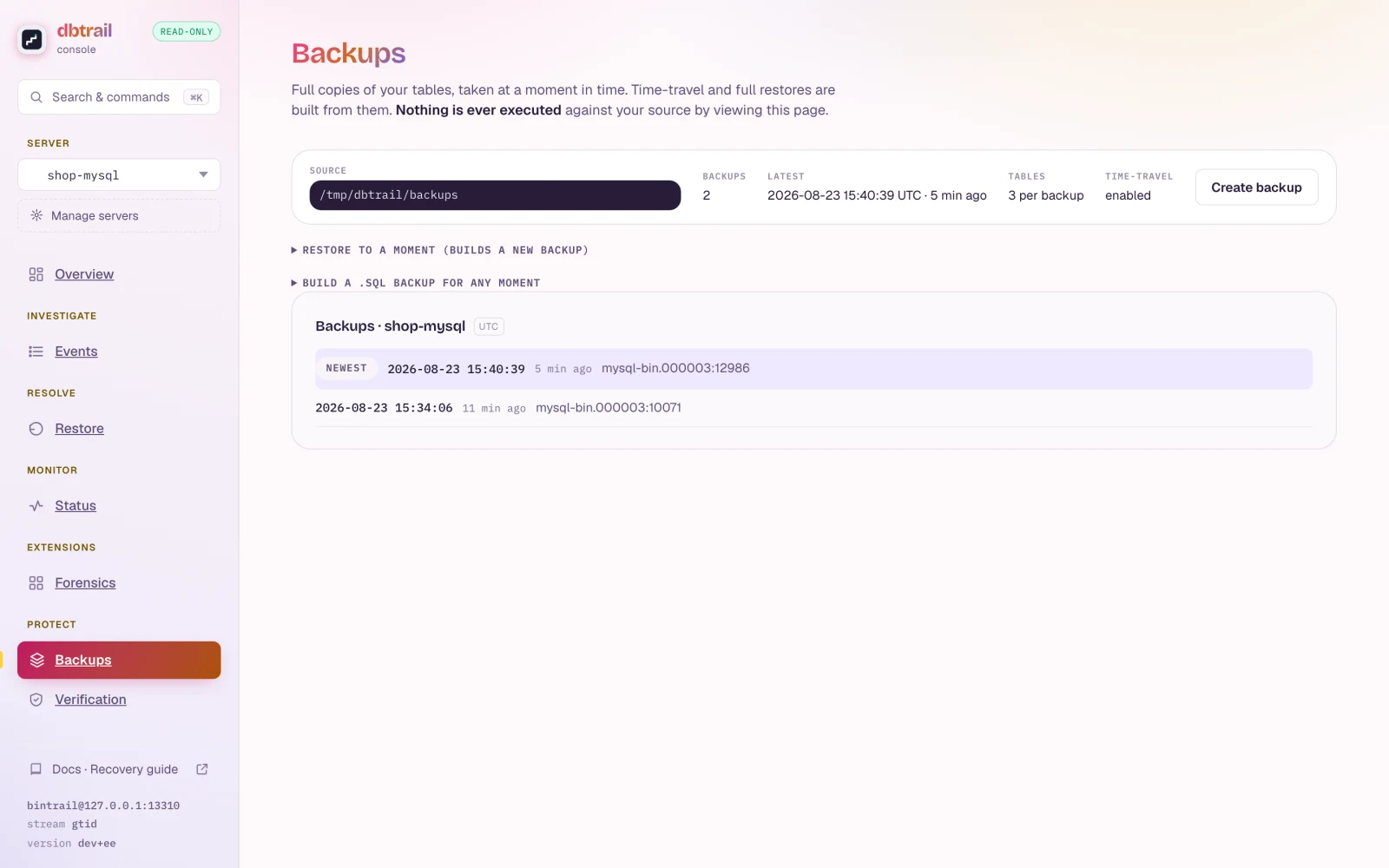

Schedules can be enabled or disabled without deleting them. The dashboard shows the last run status and full history with duration, size, and error details. Schedules persist across agent restarts and plan changes.

Default retention by plan (applies to both change history and snapshots)

This number caps two separate things that match by default but are configured independently:

• Change history (indexed binlog events + Parquet archives) — pruned automatically by the per-tenant retention worker once events age past the plan limit.
• Backup snapshot retention (retention_days on each schedule, 1–365 days) — stored with the schedule and intended to be applied via an S3 lifecycle policy on your backup bucket. Server-side enforcement of retention_days for mydumper snapshots isn't wired yet; until it is, configure a matching lifecycle rule on the bucket.

On-demand backups

Trigger a snapshot at any time — useful before a risky migration, schema change, or large data import:

curl -X POST https://api.dbtrail.com/api/v1/backup \
  -H "Authorization: Bearer bt_live_YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{"server_id": "your-server-uuid"}'

The call returns immediately with a backup_id you can poll for progress.

How dbtrail implements the snapshot step

The agent on each EC2 instance (which also runs the bintrail CLI for streaming and recovery) invokes mydumper directly for full control over dump options and error handling. Mydumper splits the dump across multiple threads (default: 4), which is significantly faster than single-threaded mysqldump on large databases.

Snapshot-step options:

• Schema/table filtering — snapshot specific schemas or tables instead of the entire server
• Compression — dump output is compressed to shrink S3 storage cost

S3 layout

Snapshots are uploaded to S3 under a /backups/ prefix inside the shared archive bucket, with tenant and server segments:

s3://<bucket>/backups/<tenant>/<server-name>/2026-03-13/141500/

This keeps backups organized per tenant and server, with date-based directories for browsing and retention management, and lives in the same bucket as the binlog event archives.

BYOS: your data stays in your S3 bucket

On the In Your VPC deployment model (Premium and above), the agent runs in your network and writes Parquet binlog archives directly to an S3 bucket you own. The SaaS control plane only sees the metadata index (table, event type, PK, timestamp) over the agent WebSocket — row data never leaves your AWS account:

• Binlog event archives remain in your AWS account (you control the KMS key, bucket policy, and lifecycle)
• dbtrail cannot read your row data — the SaaS side only sees aggregate metadata used for query routing and coverage tracking
• You can revoke access instantly by disabling the bucket policy; streaming and archiving continue locally on the agent

See the Local Agents guide for setup and the security overview for the full trust boundary.

Backups on BYOS

On the In Your VPC deployment (BYOS), dbtrail does not run snapshots against your MySQL — the SaaS control plane has no inbound path into your network. The hosted endpoints return 422 byos_not_supported:

$ curl -X POST https://api.dbtrail.com/api/v1/backup \
    -H "Authorization: Bearer bt_live_..." \
    -d '{"server_id": "..."}'

{"detail": "BYOS mode: backup operations are delegated to the customer's agent",
 "error_code": "byos_not_supported"}

Instead, you take snapshots locally by running mydumper directly on a host that can reach MySQL (typically the same host as the agent). The binlog stream the agent is already capturing covers everything between snapshots, so the end-to-end PITR story is the same as on Cloud — you just own the snapshot step.

The model

[Local mydumper snapshot]   +   [agent's continuous binlog stream]   =   full PITR coverage
        │                                  │
        ↓                                  ↓
   your S3 bucket                     your S3 bucket (Parquet archives, agent-managed)

Both pieces live side-by-side in your S3 bucket; dbtrail's control plane only sees indexed metadata over the agent WebSocket.

One-off snapshot

Run this on any host with network access to your MySQL. It uses the replication user you already created for the agent (step 2 of Local Agents):

TS=$(date -u +%Y%m%dT%H%M%S)
DUMP_DIR=/var/backups/bintrail/$TS
mkdir -p "$DUMP_DIR"

mydumper \
  --host 127.0.0.1 --port 3306 \
  --user bintrail --password "$BINTRAIL_PASSWORD" \
  --outputdir "$DUMP_DIR" \
  --threads 4 \
  --regex '^(?!(mysql|sys|performance_schema|information_schema)\.)' \
  --sync-thread-lock-mode NO_LOCK

# Sync the whole dump directory — the metadata file matters for PITR (see below).
aws s3 sync "$DUMP_DIR" "s3://my-company-dbtrail/backups/<server-id>/$TS/"

Notes:

• --sync-thread-lock-mode NO_LOCK skips LOCK INSTANCE FOR BACKUP / FLUSH TABLES WITH READ LOCK. dbtrail's binlog stream already provides consistency, so the lock isn't needed and avoids requiring BACKUP_ADMIN/RELOAD. (This matches what the hosted agent does — see agent/handler/dump.go.)
• The --regex excludes MySQL system schemas. To dump only specific databases, replace it with e.g. --regex '^(app|analytics)\..*'.
• aws s3 sync uploads the whole directory, including the metadata file. Do not sync just the .sql files — see the PITR note below.

Scheduling with cron

Wrap the command above in /usr/local/bin/bintrail-backup.sh and schedule it:

sudo tee /usr/local/bin/bintrail-backup.sh > /dev/null <<'EOF'
#!/usr/bin/env bash
set -euo pipefail

# Load credentials from the same env file the agent uses.
# shellcheck disable=SC1091
source /etc/bintrail/agent.env

TS=$(date -u +%Y%m%dT%H%M%S)
DUMP_DIR=/var/backups/bintrail/$TS
S3_PREFIX=s3://my-company-dbtrail/backups/${BINTRAIL_SERVER_ID}/$TS/

mkdir -p "$DUMP_DIR"

mydumper \
  --host "${MYSQL_HOST:-127.0.0.1}" --port "${MYSQL_PORT:-3306}" \
  --user "${MYSQL_USER:-bintrail}" --password "${MYSQL_PASSWORD}" \
  --outputdir "$DUMP_DIR" \
  --threads 4 \
  --regex '^(?!(mysql|sys|performance_schema|information_schema)\.)' \
  --sync-thread-lock-mode NO_LOCK

aws s3 sync "$DUMP_DIR" "$S3_PREFIX"

# Local retention: keep 3 most recent dumps on disk.
ls -1dt /var/backups/bintrail/*/ | tail -n +4 | xargs -r rm -rf

logger -t bintrail-backup "snapshot uploaded to $S3_PREFIX"
EOF

sudo chmod 750 /usr/local/bin/bintrail-backup.sh
sudo chown root:bintrail /usr/local/bin/bintrail-backup.sh

Then add a crontab entry (daily at 02:00 UTC):

# crontab -e
0 2 * * * /usr/local/bin/bintrail-backup.sh >> /var/log/bintrail-backup.log 2>&1

Or, if you prefer systemd timers:

# /etc/systemd/system/bintrail-backup.service
[Unit]
Description=Bintrail nightly snapshot

[Service]
Type=oneshot
ExecStart=/usr/local/bin/bintrail-backup.sh

# /etc/systemd/system/bintrail-backup.timer
[Unit]
Description=Run bintrail-backup nightly

[Timer]
OnCalendar=*-*-* 02:00:00 UTC
Persistent=true

[Install]
WantedBy=timers.target

sudo systemctl daemon-reload
sudo systemctl enable --now bintrail-backup.timer

PITR: keep the metadata file

After every run, mydumper writes a metadata file into the output dir that looks like:

Started dump at: 2026-05-19 02:00:01

SHOW MASTER STATUS:
        Log: mysql-bin.000148
        Pos: 197834521
        GTID:5d8e...:1-9421317

Finished dump at: 2026-05-19 02:01:44

This is the input to point-in-time recovery: it tells dbtrail where to start replaying binlog events from. The aws s3 sync above already uploads it because it copies the whole directory — but if you customize the upload step (e.g. piping only *.sql files through compression), make sure metadata still ends up next to the dump in S3. Without it, PITR can only restore to the dump-finish moment, not to a precise later target time.

See the PITR guide for how the snapshot + binlog stream combine on restore.

Encryption and retention

• Encryption in transit/at rest — use a customer-managed KMS key on the destination bucket (SSE-KMS) so encryption is automatic on aws s3 sync. mydumper also supports --encrypt-key-file for on-disk encryption if you need defense-in-depth before upload.
• Retention — set an S3 lifecycle policy on the backups prefix (e.g. transition to Glacier after 30 days, expire after 365). The script above already prunes local copies to bound disk usage.

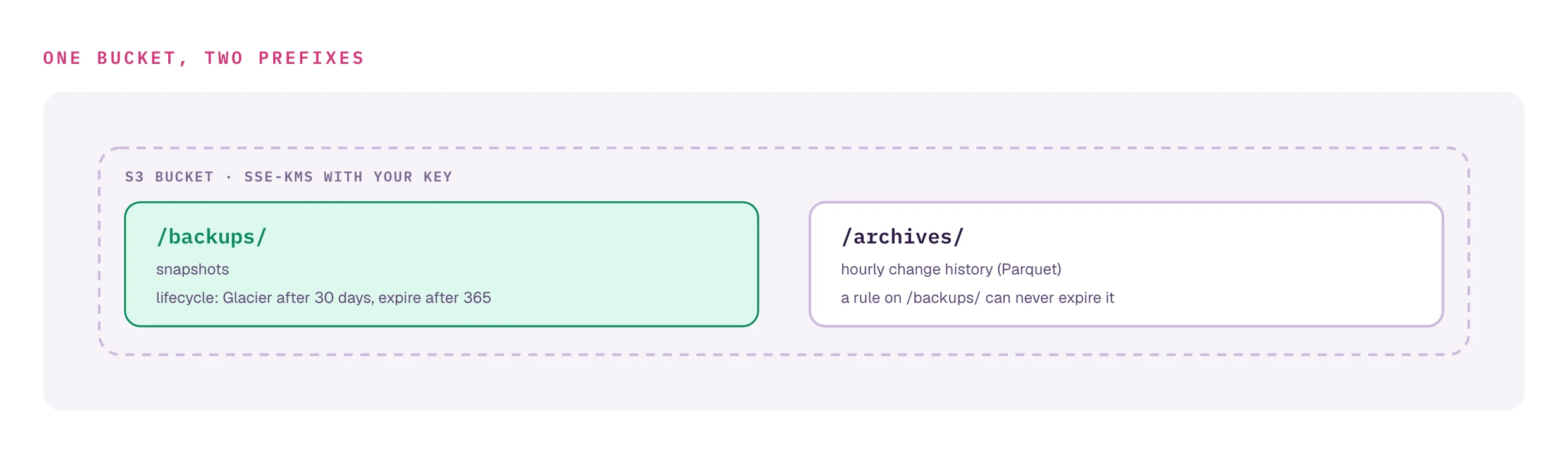

• Bucket layout — keep snapshots and the agent's Parquet archives in different prefixes of the same bucket so a lifecycle rule on /backups/ doesn't accidentally expire your binlog archives.

What's coming

A future SaaS-managed BYOS backup flow will let you register the bintrail-backup.sh step with dbtrail so the dashboard shows backup history, retention status, and integrates with the existing PITR UI. Until then, this is a customer-managed workflow.

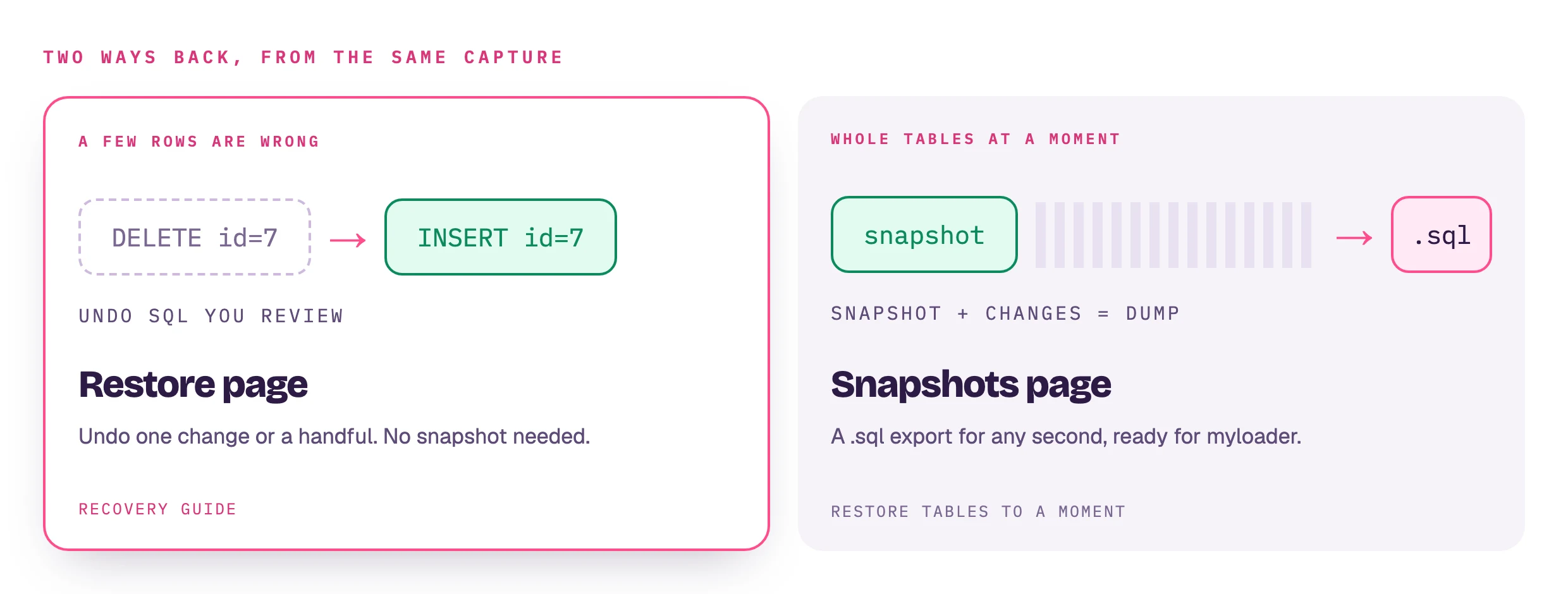

Restore

The restore side of dbtrail is covered in two places depending on what you need:

• Row-level recovery — undo a specific DELETE, revert an UPDATE, or remove an unintended INSERT. Generates dry-run SQL you review before applying. See the recovery guide.
• Point-in-time restore of whole tables or the whole database — reconstruct the full state at any past moment by combining a base snapshot with binlog events up to the target time. Output is a standard mydumper dump you can import anywhere. See the PITR guide.

Both restore paths are surfaced as first-class flows in the dashboard (and exposed to Claude via MCP). dbtrail intentionally never executes writes against your MySQL — you always review and apply the output yourself.

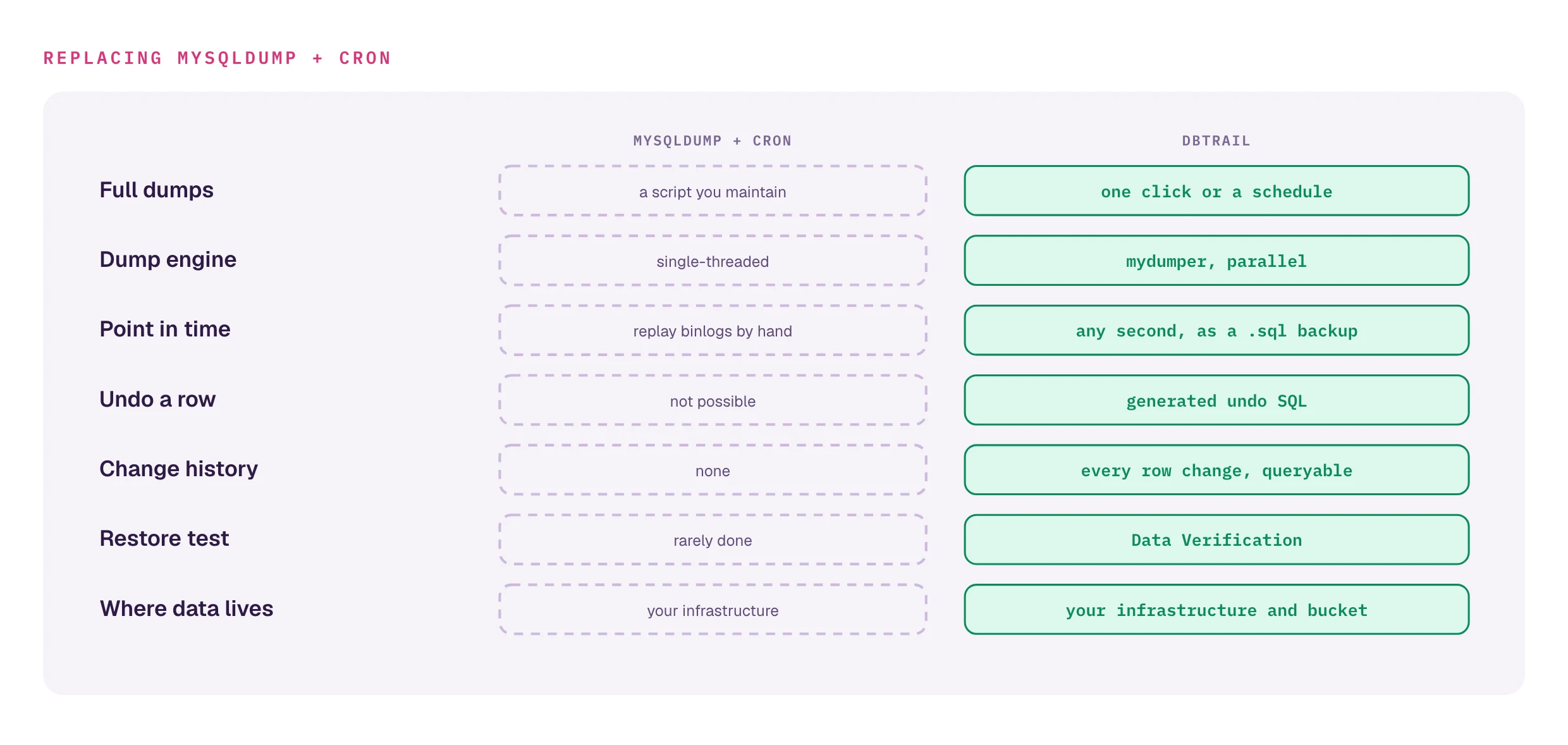

Compared to DIY mysqldump + cron

If you're migrating from a cron-driven dump setup, here's what dbtrail replaces and adds:

mysqldump still has its place for one-off exports, but the continuous-protection story it can't tell is where dbtrail lives.

Best practices

1. Snapshot at least as often as your binlog retention. If MySQL purges binlogs after 7 days, snapshot at least weekly so you always have a baseline inside the retention window.

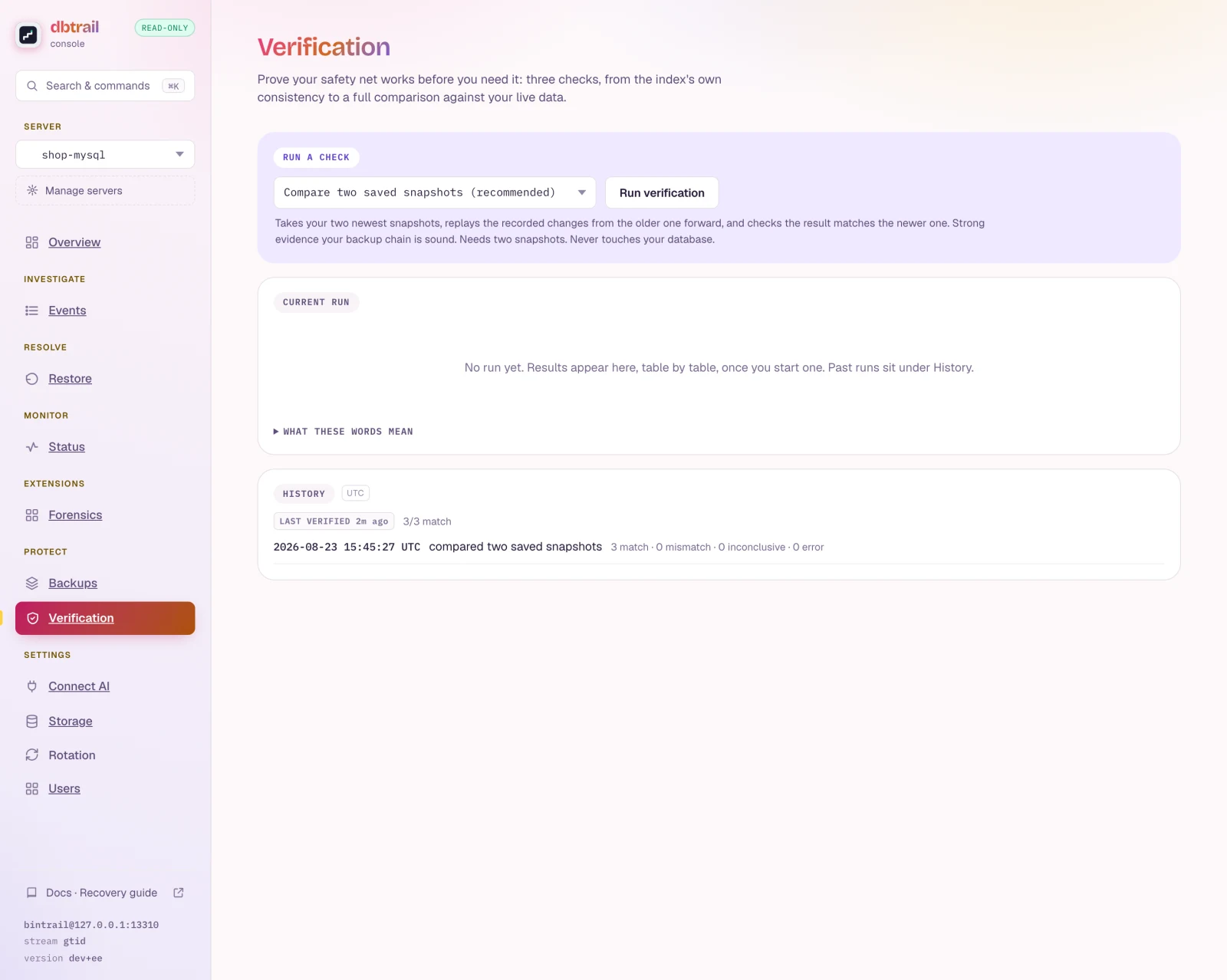

2. Test your restores. A backup you've never restored is a backup you can't trust. Use the PITR guide to validate end-to-end against a staging MySQL periodically.

3. Monitor backup status. Check the dashboard or wire the status API into your monitoring. A silently failing schedule is worse than no schedule — it creates a false sense of security.

4. Keep at least two retention cycles. If you snapshot weekly with 30-day retention, you'll always have ~4 good baselines. If one is corrupted, you have fallbacks.

5. Lock down your S3 bucket. Dumps are stored at rest in the tenant-prefixed S3 path and may be accessed by multiple team members. Restrict the bucket to least-privilege IAM and enable SSE; for BYOS, use a customer-managed KMS key.

Next steps

• Point-in-time recovery — reconstruct your database to any past moment
• Recovery guide — generate SQL to reverse specific row-level changes
• Stream configuration — configure binlog streaming, filtering, and checkpoints
• Server configuration — connect dbtrail to your MySQL database
• Backups API reference — endpoint details for programmatic scheduling
